• 100″ Wide / 84″ Ceiling
• Aluminum Construction: Walls, Floor, & Roof
• 7 Gauge 2′ X 6′ Powder Coated Tube Chassis
• 14 Gauge 24″ O/C C-Channel Crossmember
• Steel Wheel Wells & Fenders Attached to Chassis

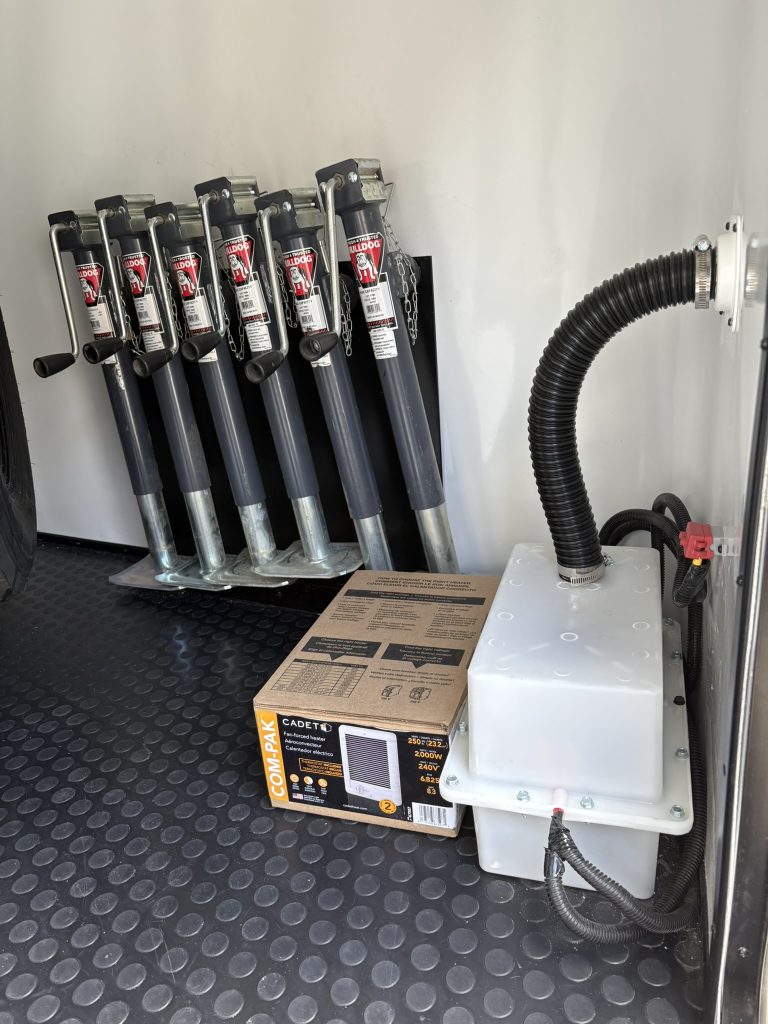

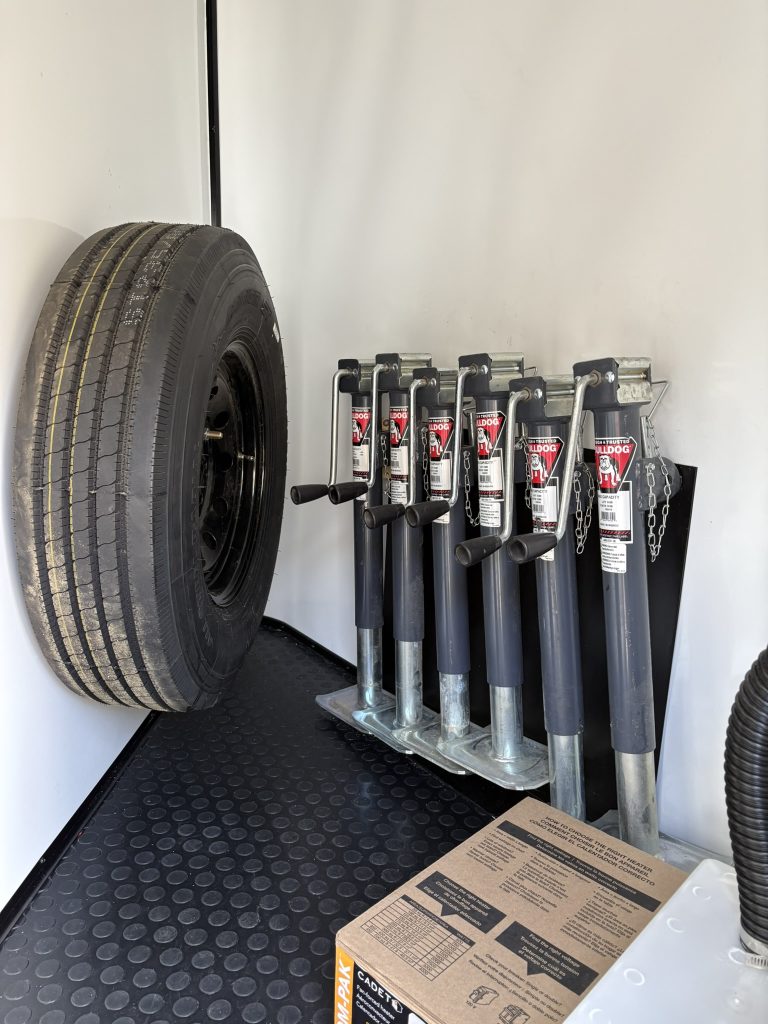

• 6 – Manual Stabilizer Jacks
• 7,000 lbs Ram Manual Hitch Jack
• 5/16″ Grade 43 Safety Chain w/ 11,700 lbs Clevis Hooks

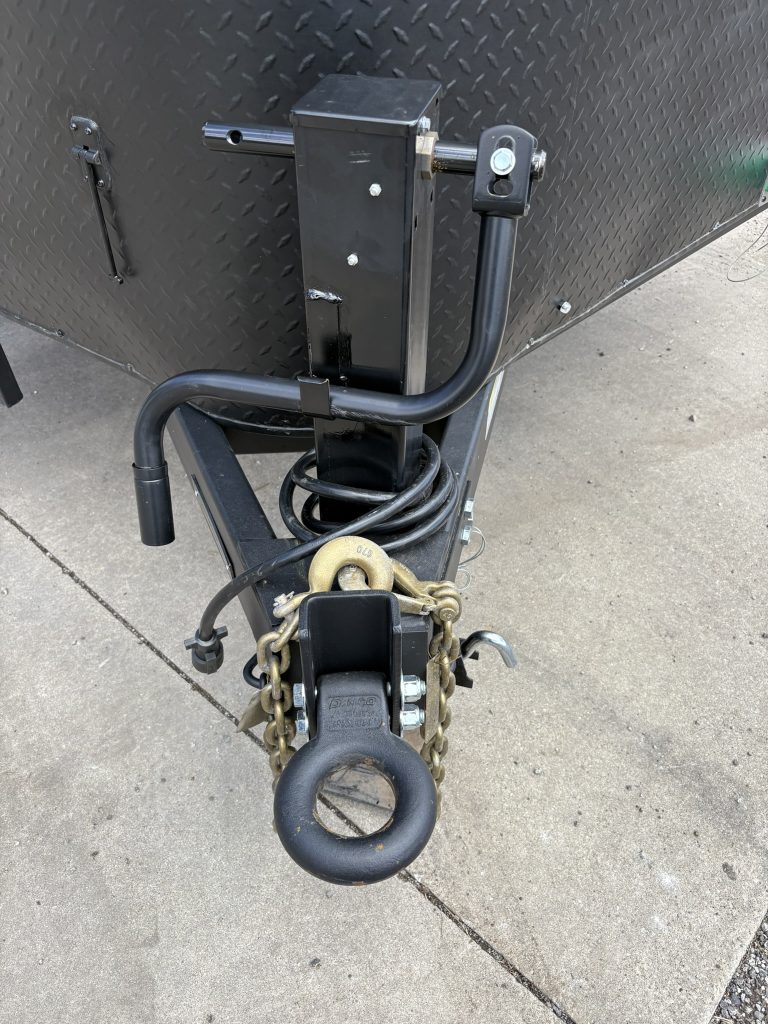

• 2-5/16″ 14K 5-Position Adjustable Coupler
• 4 – ST235 / 80R16 Aluminum 8 Lug 14-Ply Wheels

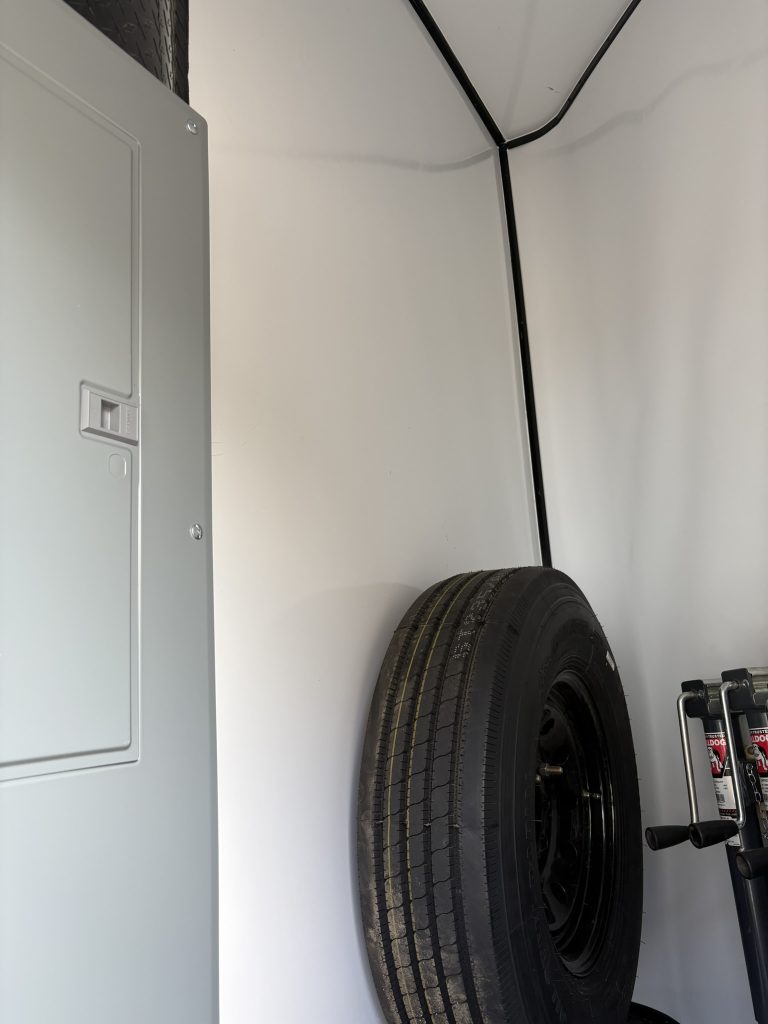

• 1 – ST235 / 80R16 Black Steel Spare Tire 14 Ply on Tire Carrier
• 2 – 7000 lbs Torsion Axles w/ Electric Brakes
• 1.5″ Bonded Side Walls
• 1.5″ Foam Insulation: Walls R7
• Fiberglass Insulation: Chassis R14 – Floor R7 – Ceiling R14
• Reflective Foil Wrapped Ceiling
• White Gelcoat Exterior Siding Backed w/ Azdel
• 5/8″ Tongue & Groove Plywood Floor Decking
• 3/8″ OSB Roof Decking on 16″ O/C Aluminum Truss Rafters
• All-Weather TPO Walkable Radius Roof

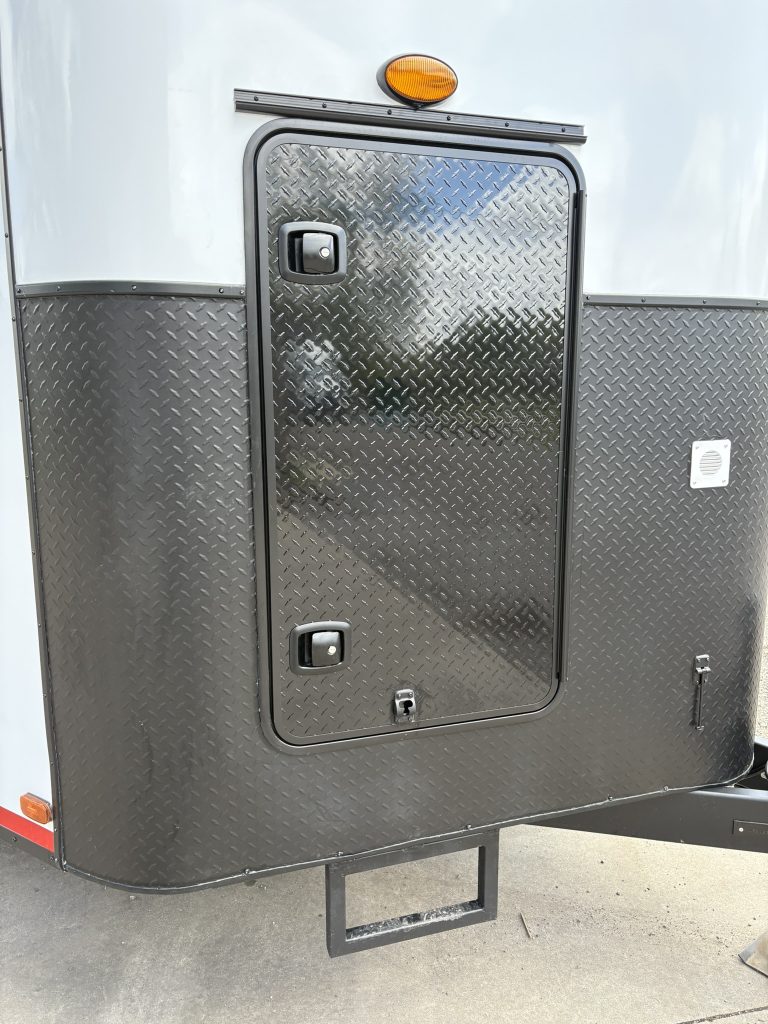

• Black ATP Stoneguard

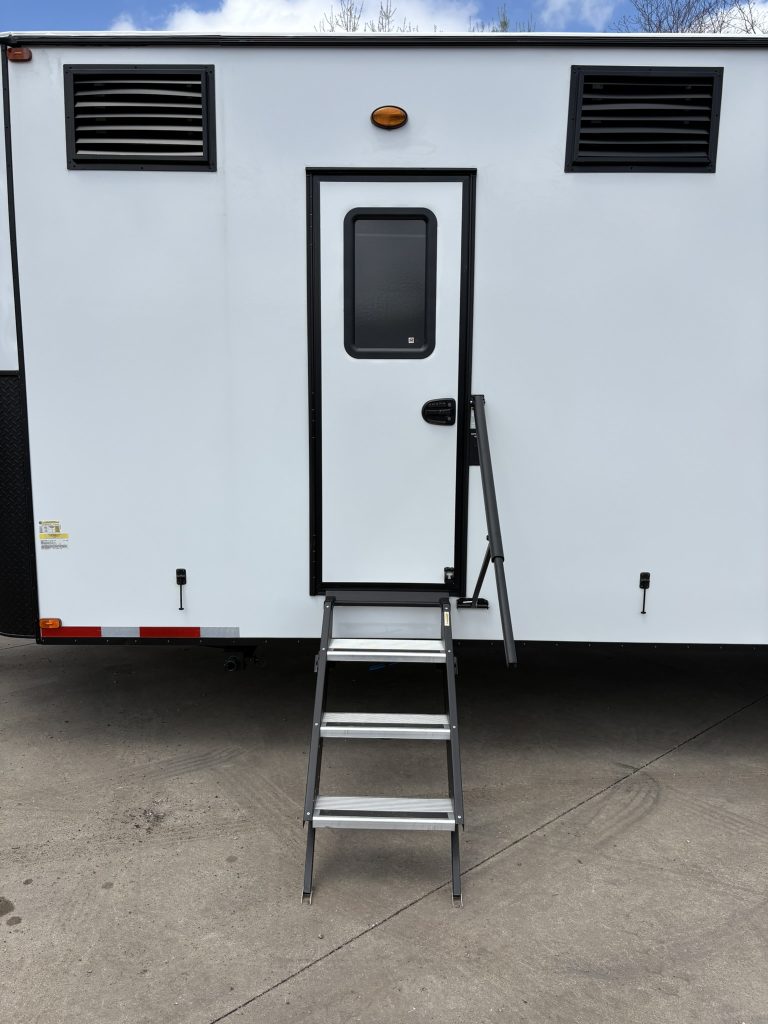

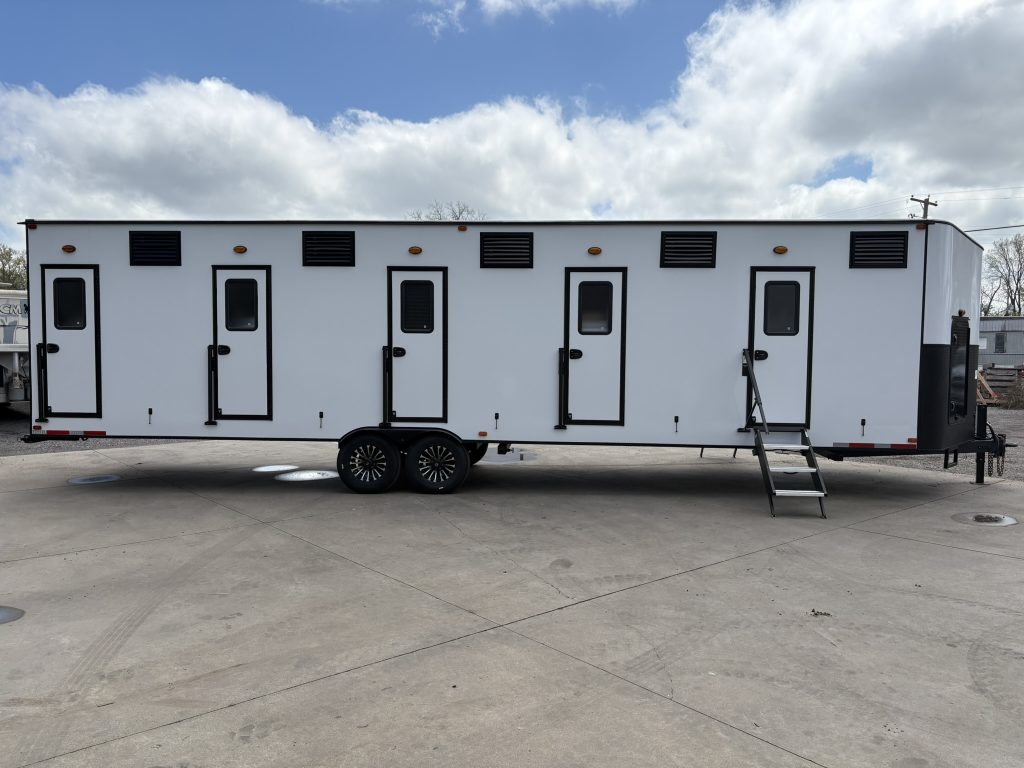

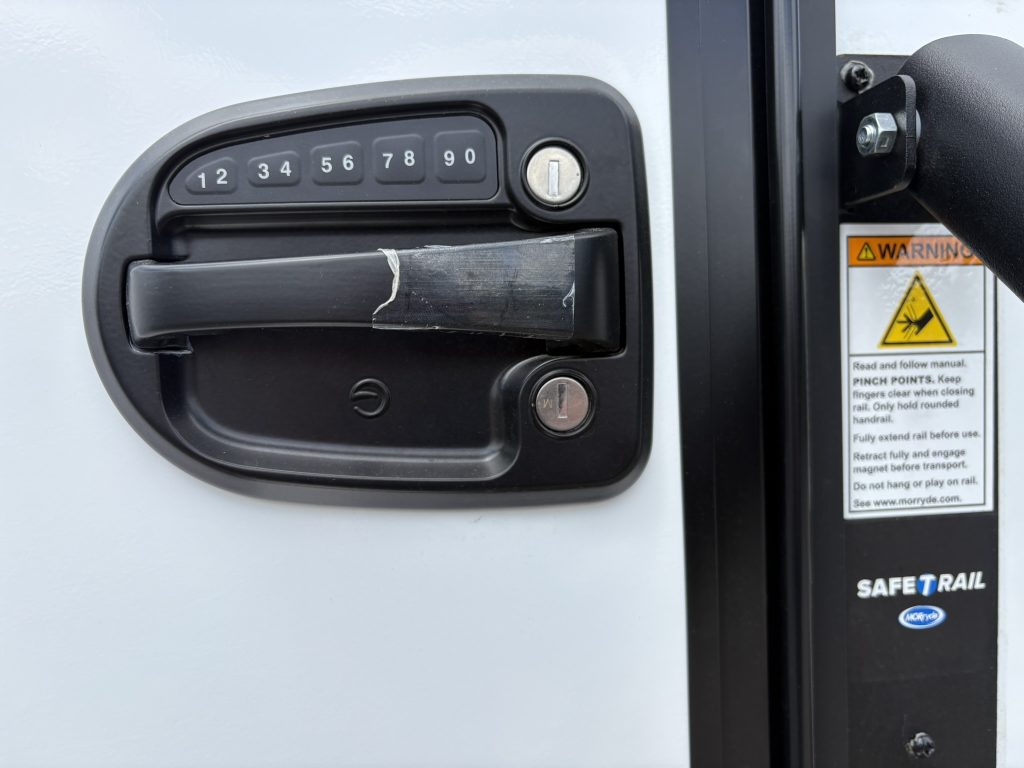

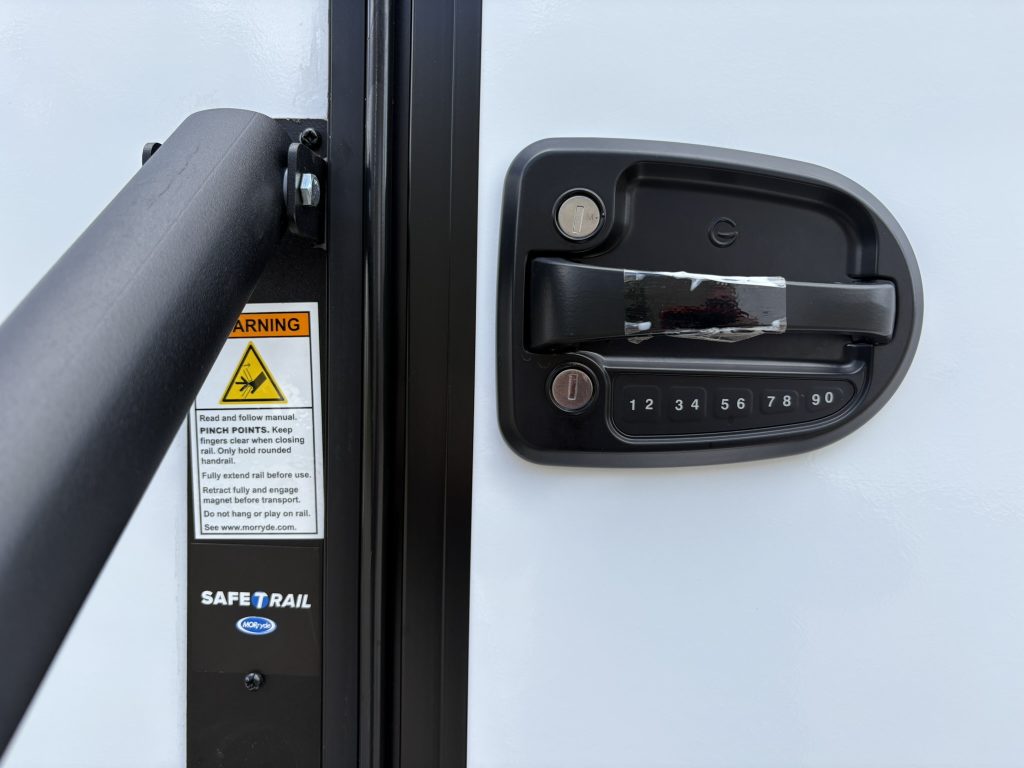

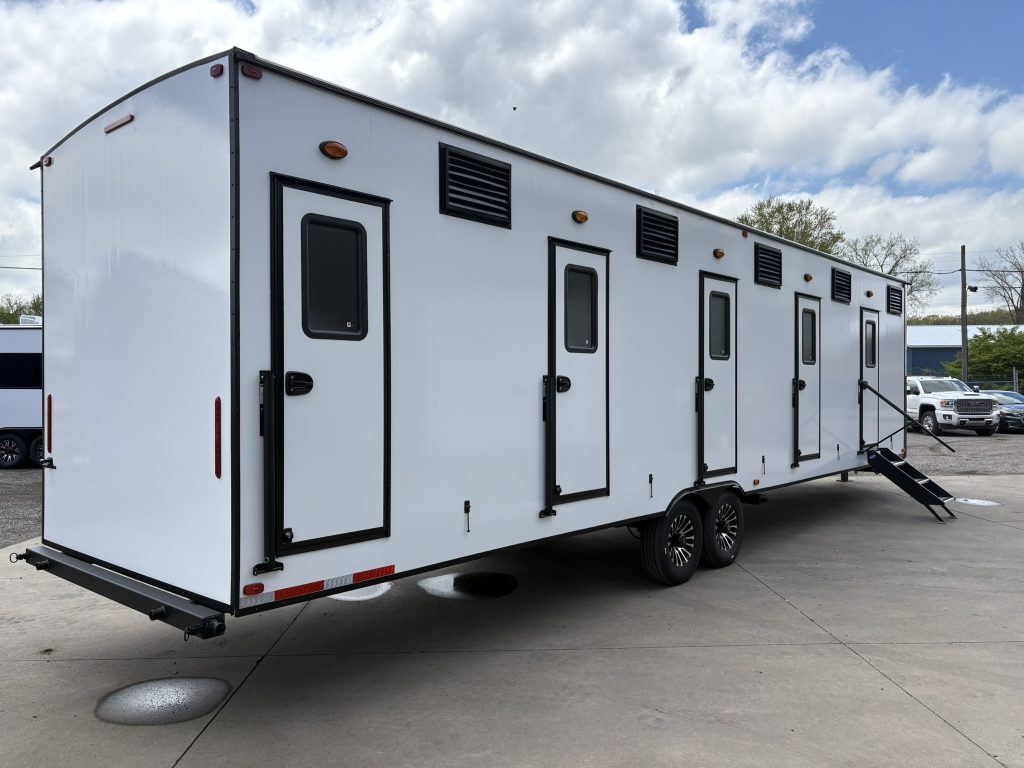

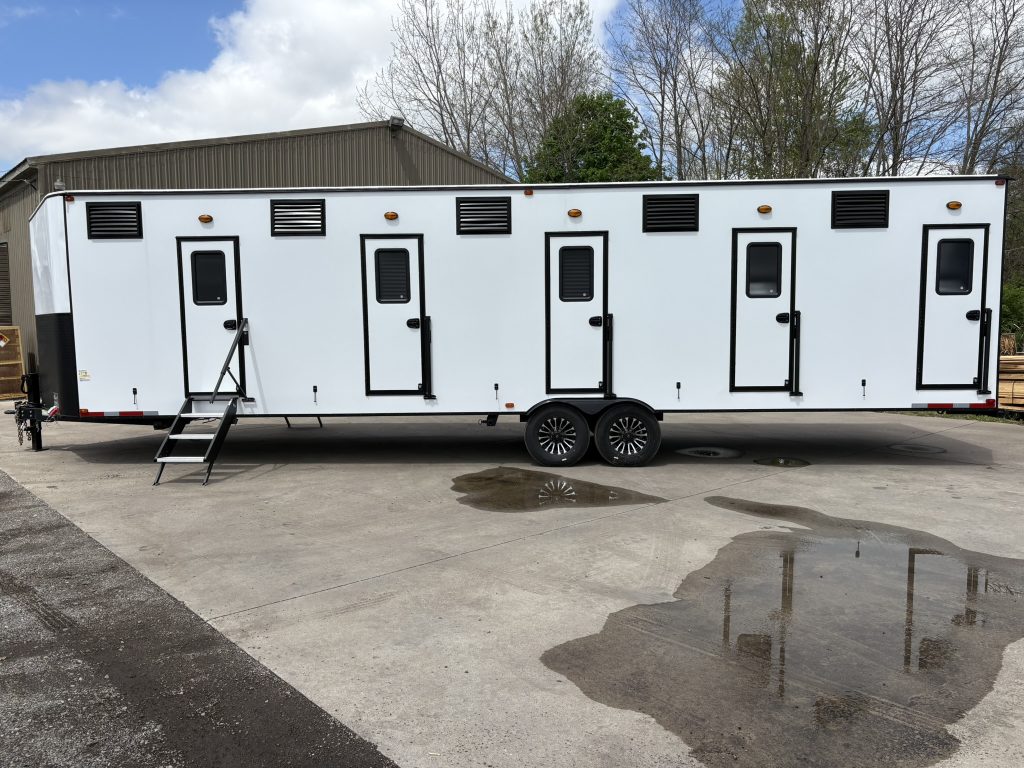

• 10 – 26″ X 72″ Exterior Fiberglass Entrance Doors
• 10 – 18″ Heavy Duty Black Safe-T Handle

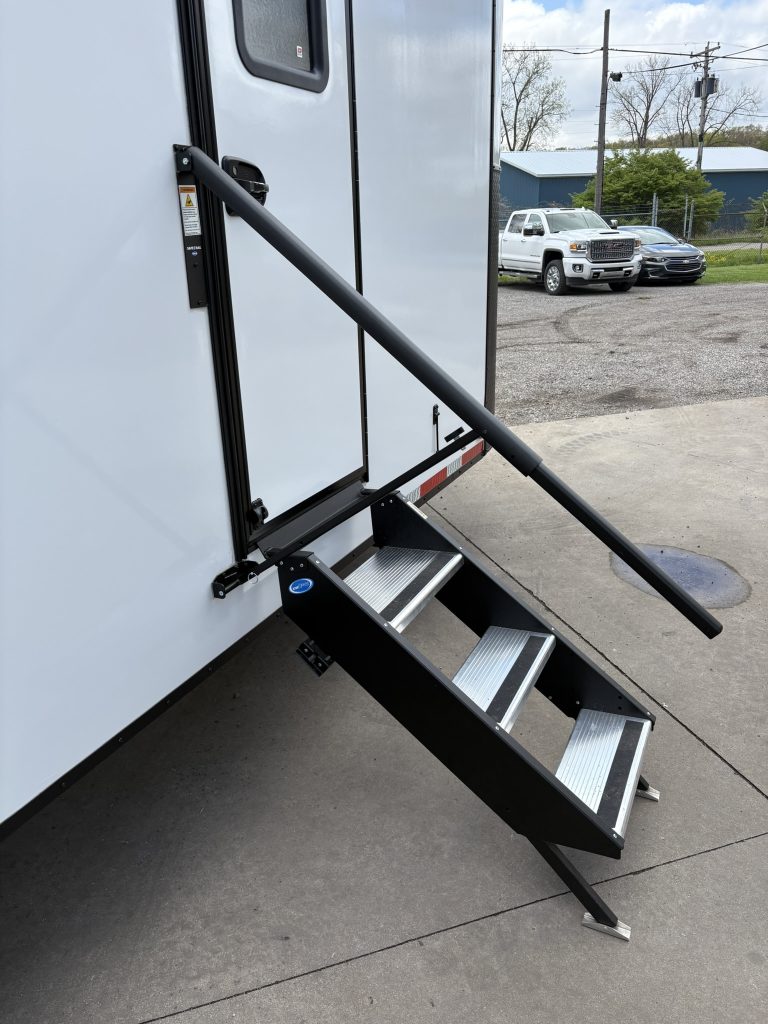

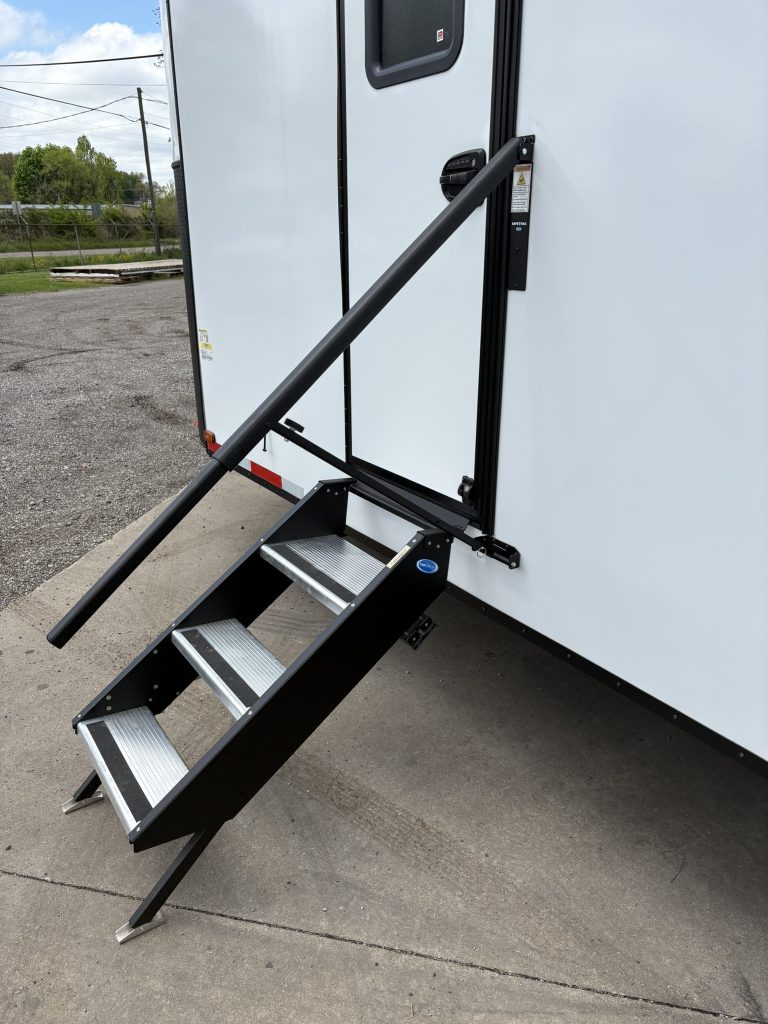

• 10 – Heavy Duty Folding Entry Steps w/ Metal Kick Plate

• Seamless Fiberglass: Ceiling & Walls

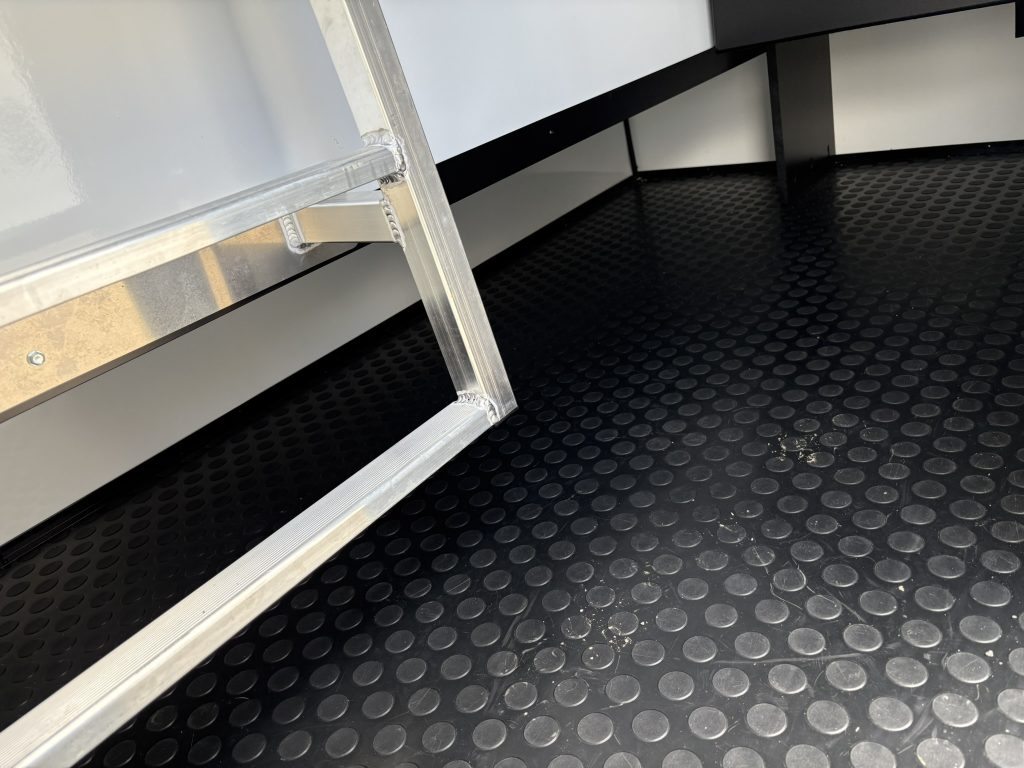

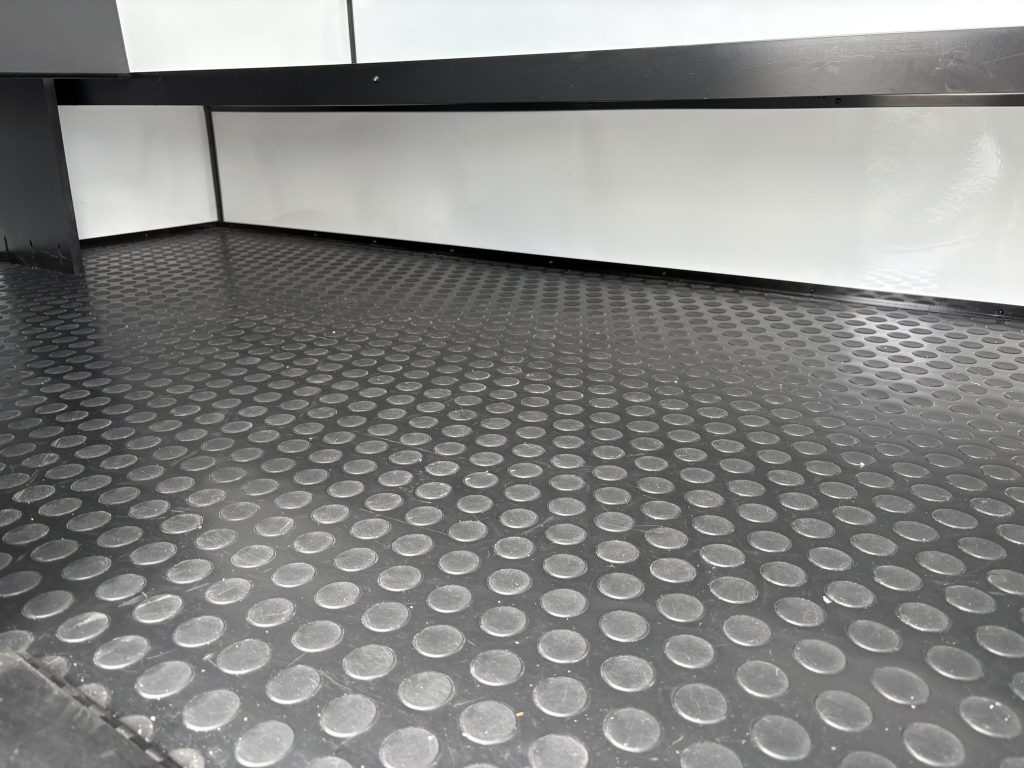

• Black Rubber Coin Flooring

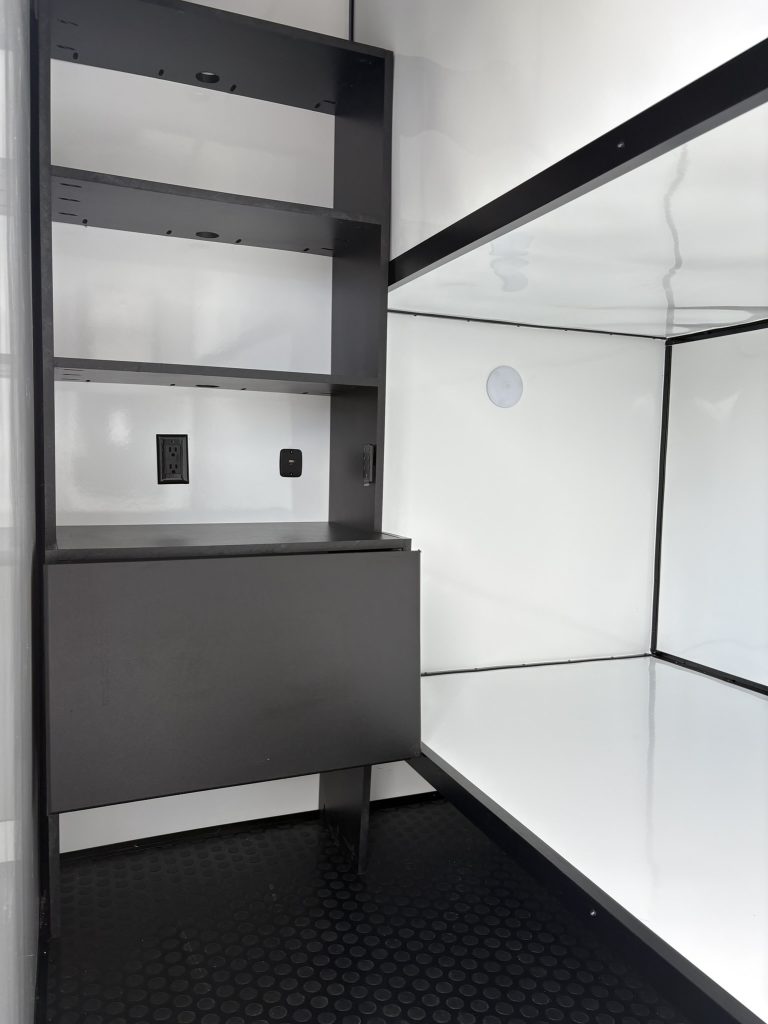

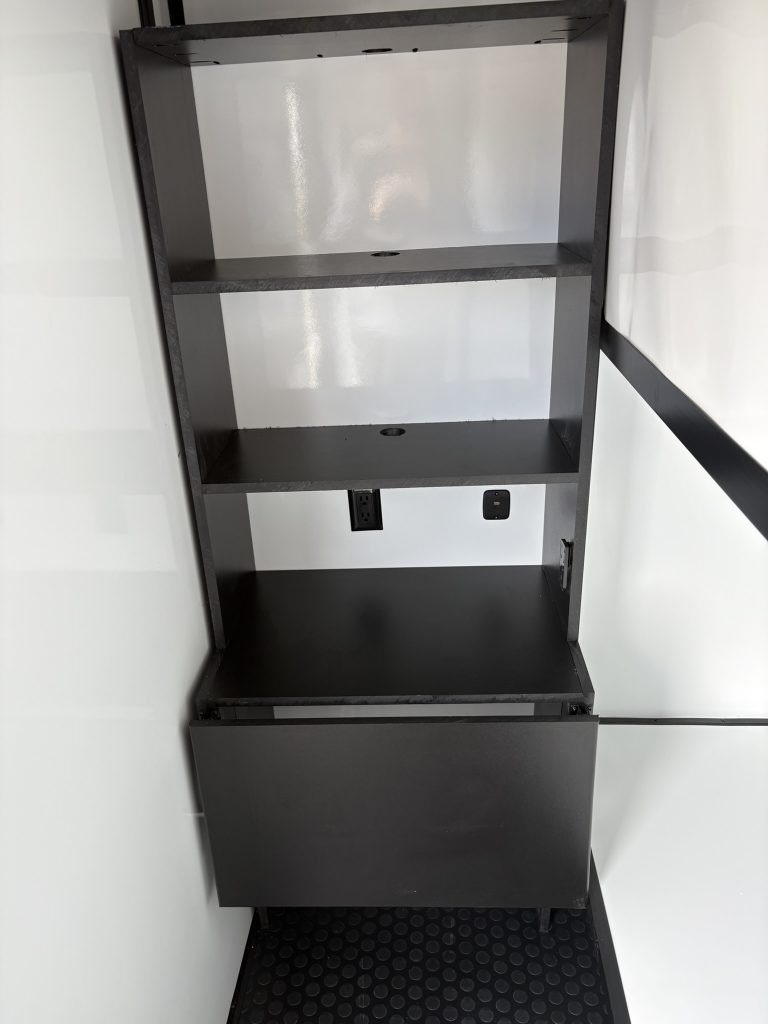

• Black HDPE Cabinets

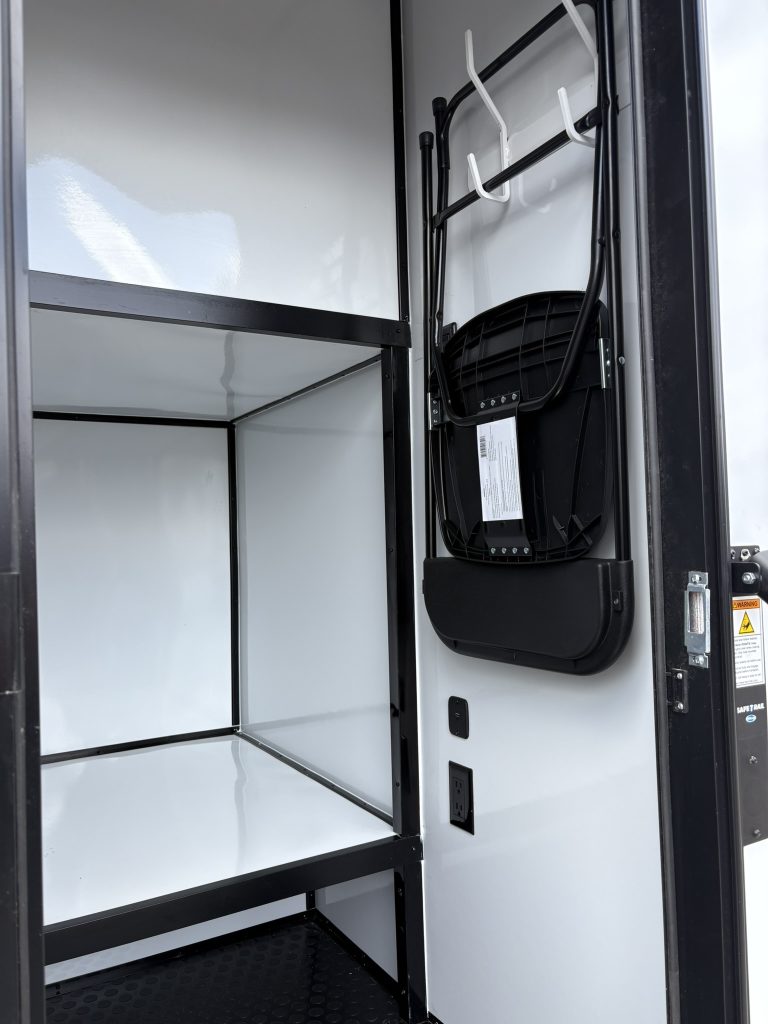

• 1 – Coat Hook in Each Bunk Room
• USB-C (1 per room)
• 10 – 36 x 80 Vinyl Covered Mattresses

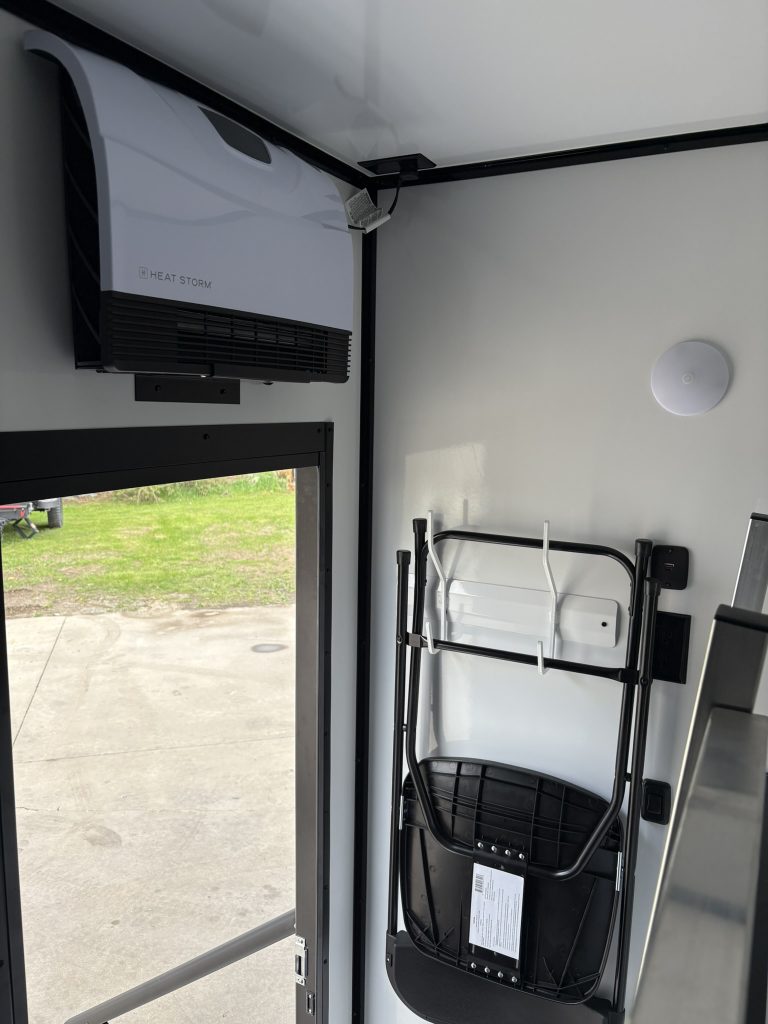

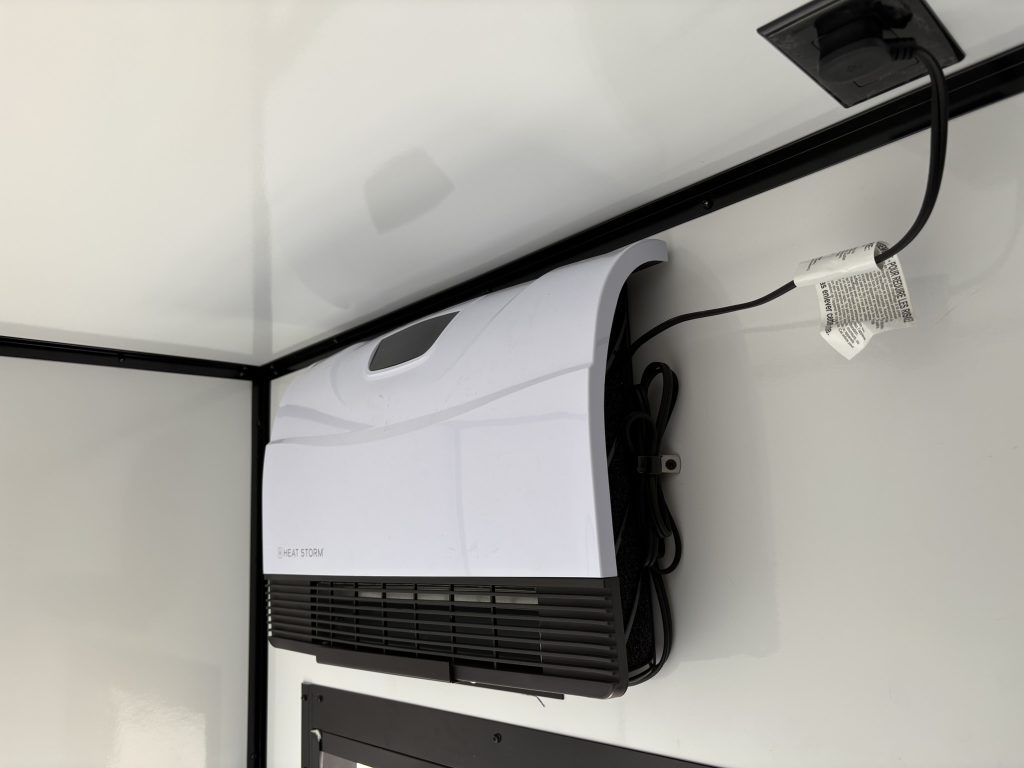

• 10 – 1,500 BTU Heat Storm Electric Heater w/ Built-In Control
• 2- Roof Mount 15,000 BTU AC with Heat Pumps
• 120v Smoke Detector w/ 9v Battery per Room

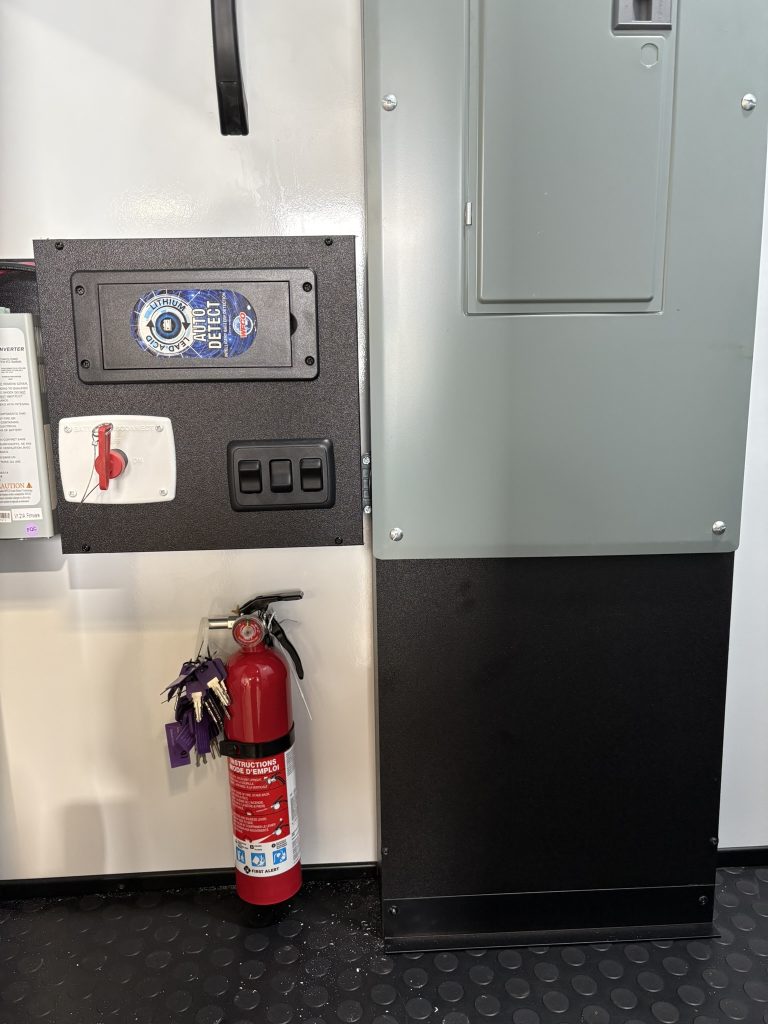

• 10 – Fire Extinguishers (1 per bunk room)

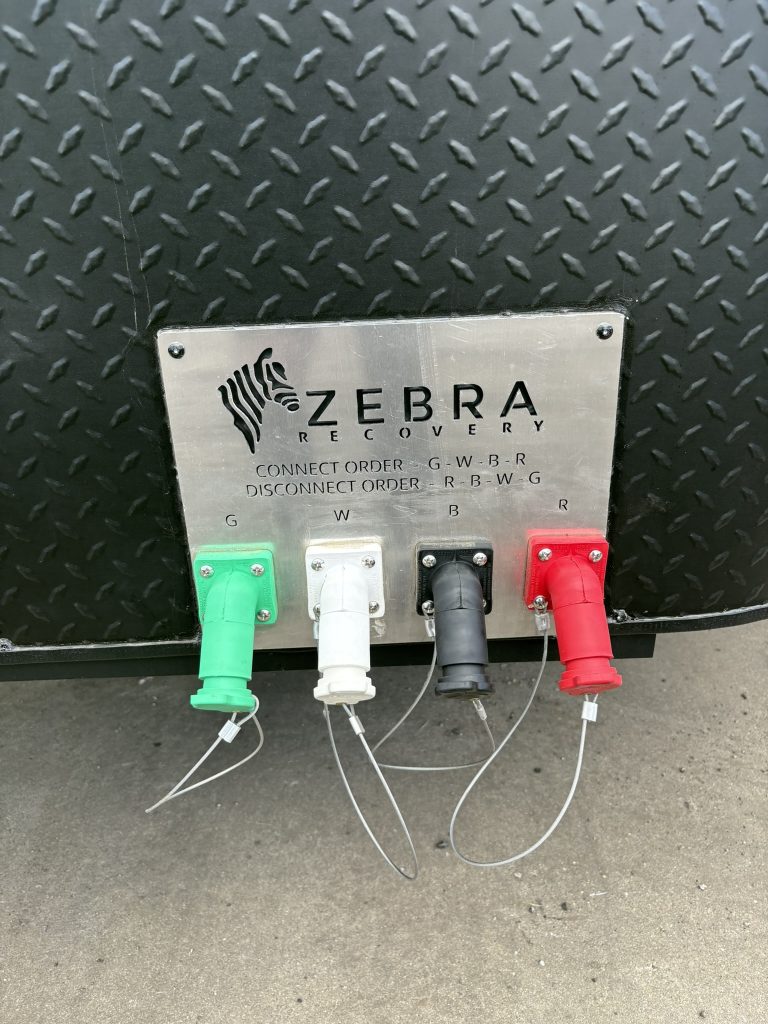

• 50 amp 120/240 Primary Hookup Roadside Heat & Air
• 50 amp 120/240 Secondary Hookup Curbside Rooms Heat only
• Group 27 Battery w/ Vented Battery Box
• 55 AMP Electrical Converter
• Hi-Temperature Breakaway Switch

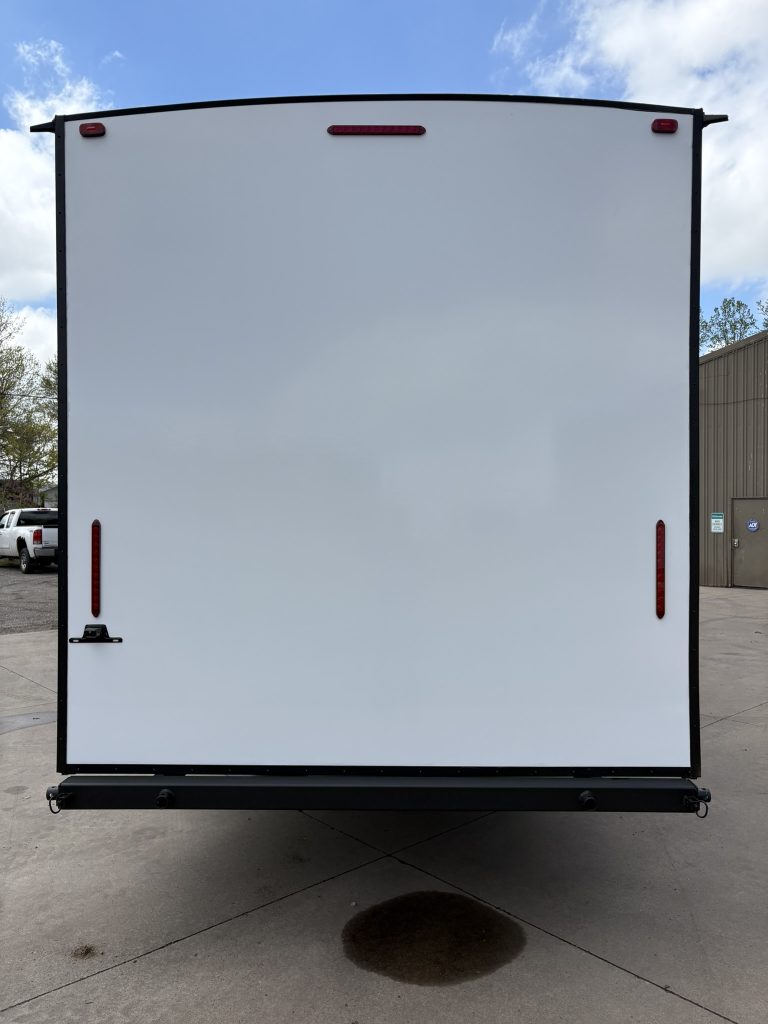

• LED Stop, Turn, & Tail Lights
• LED Clearance & Running Lights
• 12v LED Surface Mount Ceiling Lights
• 12v LED Porch Light at Each Entry Door
• Battery Disconnect Switch
